Qurius

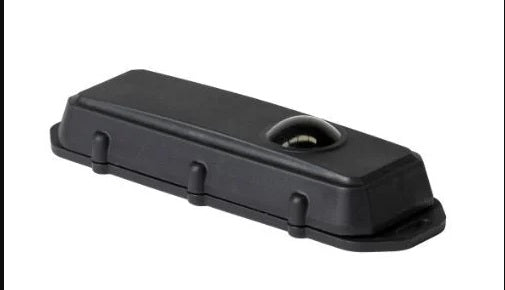

Barra Radar (sensor)

Barra Radar (sensor)

1.450,00 NOK
1.450,00 NOK
Salg Utsolgt
Inkludert avgifter. Frakt beregnes ved kassen.
Trenger Gateway som Manta eller Oyster BLE

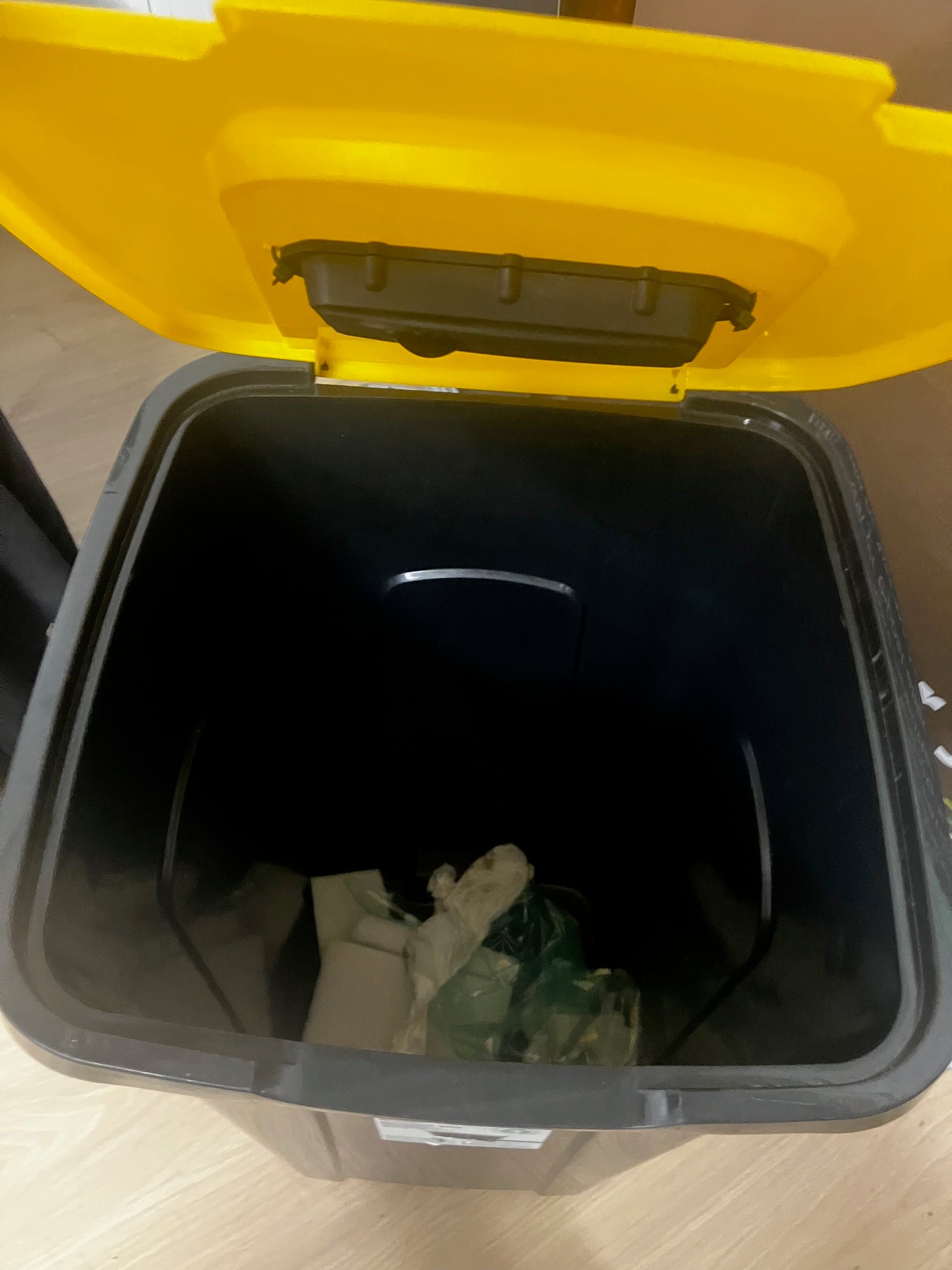

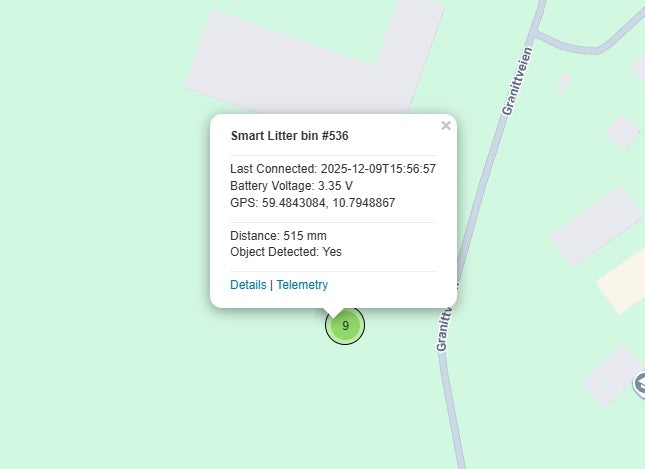

Smart litter bin -Manta fusion and Barra Radar – Qurius

Battery-powered Bluetooth® radar sensor with millimeter-level precision for level and object detection.
  • Seamless integration with Digital Matter Bluetooth Gateway devices
  • Powered by 2 x AA user-replaceable batteries with 8+ years battery life
  • Easy and secure configuration via companion mobile app (Android & iOS)
  • Suitable for fluid level monitoring, cargo detection, bin fill measurement, and other industrial applications

  • Bluetooth® 5.3 Beacon

  • Silicon Labs BGM240P Low Energy Beacon for transmitting sensor data.


  • Radar Chipset

  • Acconeer A121 60GHz Pulsed Coherent Radar (PCR)

  • Radar Range

  • Minimum - 150mm
    Maximin - 15000mm

  • Radar Steps (Resolution)

  • Minimum - 2.5mm
    Maximum - 300mm

  • Lens Type

  •  Plano Convex

  • Lens Angle of View

  •  ~15°

  • Scan Interval

  • Minimum - 1s
    Maximum - 2 hours

  • Number of Simultaneous Distance Measurements

  •  2


  • User-Replaceable Batteries

  •  2 x AA. Batteries not included.
    Widely available at most hardware or retail locations.

  • Supported Battery Types

  • Lithium
    Battery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.

  • Battery Life Estimates*

  • 2-Hour Scan Interval** – 8+ years
    30-Minute Scan Interval** – 8+ years
    5-Minute Scan Interval** – 7+ years

Vis alle detaljer
